Cutting the Guillotine Down to Size

Michael L. Mc Hale
Roshan P. Shah
PaperCon in Atlanta Georgia

[This article was originally published in PC AI magazine, Volume 13, Number 1 Jan/Feb 99. The magazine can be reached at PC AI, 3310 West Bell Rd., Suite 119, Phoenix AZ, USA 85023 Tel: (602) 971-1869, FAX: (602) 971-2321, E-Mail: [email protected], Web: http://www.pcai.com]

Abstract

A program which computes layouts for a specialty paper cutting firm is described. The problem, the so-called 2-dimensional guillotine problem, is a constraint on a complete partition of 2-dimensional space. Like the complete partition, the guillotine problem remains NP hard. The constraints for our particular domain, however, allowed us to return a solution to the problem within acceptable time limits. To help ensure usability we developed the interface in Visual Basic while solving the partition in Amzi! Prolog. The problem, program design, implementation and related issues are covered in the paper.

Introduction

The partitioning of 2-dimensional space is a ubiquitous problem in industry. It appears in many forms from pallet loading to floor tile tessellation. A subset of the problem, the 2-dimensional guillotine problem, is almost as pervasive. Various aspects of the problem are found in industries that produce two dimensional sheets of glass, textiles and paper for example. We have produced a Prolog program which solves the guillotine problem for a specialty paper producer. The program has been put into use and has cut the time required for sheet layout while reducing waste.

The Problem

The general 2-dimensional partition problem, Figure 1, arises when a flat surface is to be subdivided into n pieces, as when subdividing land. If the pieces are determined a priori then some waste is allowable. This changes the problem to that of covering the surface to the greatest extent possible. In other words, the problem is to find the combination of pieces and the layout pattern that covers the surface and minimizes waste.

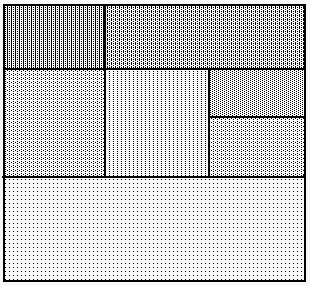

Figure 1: General Partition

If the surface is a sheet (of material) and the pieces are to be cut from it, then the problem becomes the guillotine problem. The problem takes its name from the necessity of cutting the sheet completely across (like a guillotine) every time it is cut. Even if we only consider rectangular pieces, as required in our domain, the problem has an exponential search space. Each rectangle can be placed into any space large enough to hold it, and, as can be seen in Figure 2, each rectangle not only has a size but also an orientation.

Figure 2: Partition with one size Piece

The necessity of cutting the sheet all the way across limits the number of combinations that have to be considered. That is, any configuration with pieces bisected by the cut are illegal. Figure 1 would be a legal configuration while Figure 2 would be illegal. This limiting of patterns in conjunction with a small sheet size and a small number of pieces makes the guillotine problem solvable for our domain.

System Design

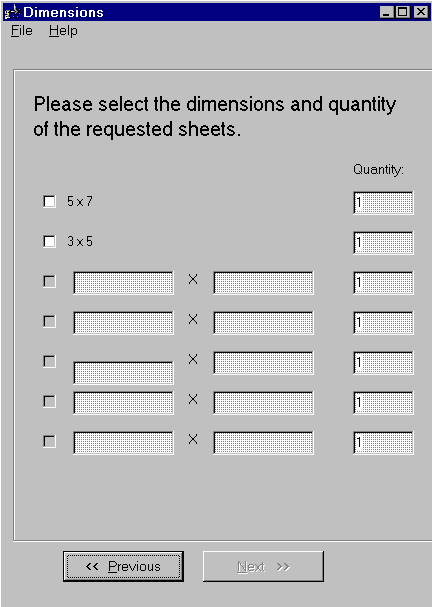

The system we developed consists of a Visual Basic interface and an Amzi! Prolog logic engine that configures the layout. The interface is used for both user input and graphic output. When users start the program they enter the size of the main sheet. Then they have to enter the size of each of the pieces that are to be cut from it (Figure 3). They can also specify the minimum quantity for any of the sizes (ex., requiring at least 3 5x7 sheets).

Figure 3: Piece Input

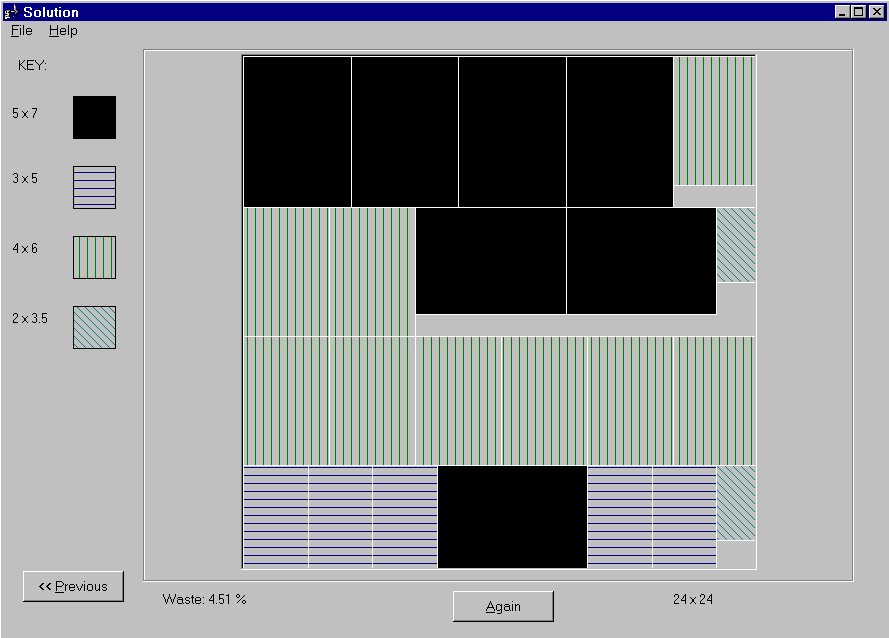

The output of the system is a graphical display of the layout (Figure 4). The user then has the choice of letting the system run again to find a better answer or to use the current answer. After an answer is selected it can be printed to the default printer. We used line patterns for the pieces to differentiate them when printed on a black and white printer.

Figure 4: Graphical Display of Layout

Logic Engine

The logic engine uses a generate and test approach. While this approach does not guarantee optimal answers it does return very good layouts in a reasonable amount of time. The time issue was our main concern. A complete search is often possible but with the exponential nature of the domain we could not ensure any answer would be returned in a timely manner. Generate and test gives us complete control of the time. The answers may not be optimal but they can be incrementally improved by the system at the user's request.

The next section contains a more in- depth discussion of our use of generate and test.

Generate and Test

Placement ProcedureThe program maintains three lists: one of pieces to be placed (the trial list); one of the pieces already placed (the placed list); and the other of the remaining empty spaces (the space list). When the placement process begins, the trial list holds the pieces that were created by the generate and test engine, the placed list is empty and the space list holds just one space; the main sheet. The procedure takes a piece from the trial list and finds the first space in the space list large enough to hold it. The piece may be placed either horizontally or vertically (ex., 5x7 or 7x5). An empty space

Figure 5: Placement of a Piece

is divided into smaller spaces whenever a piece is placed within it: the part containing the piece, the part to the right (E) of the sheet, the part below the piece (S), and the remainder of the space (SE). See Figure 5. The program then adds the piece to the piece list and adds E and the concatenation of S and SE to the spaces list (the concatenation is allowed virtue of the guillotine).

This process continues until either all the pieces have been placed or none of the spaces in the space list are large enough to contain a piece. In the latter case, the procedure backtracks and tries a different configuration for the trial list. If none of the possible configurations are successful then it fails which causes a new trial list to be generated and the procedure restarts.

Implementation

Our reasons for choosing Prolog were its ability to rapidly prototype and to change control structures as needed. This was a fortuitous choice as we started by using a full search knowing that we could use the built-in top- down left-to-right control structure without loss of generality. That is, we could place the pieces starting with the upper left hand corner of the sheet and proceed first down then across the sheet and still get every configuration worth considering. When we ran into the time constraint we had to reprogram to generate and test. This was really minimal work.

The logic engine returns a list of four-tuples representing the placement of the pieces (piece, orientation, upper left corner, lower right corner). While this is a correct answer to the problem it is not very useful. Were this (the logic engine) a stand alone program we would want to make two further improvements: to represent the answer in a useful manner (i.e., graphically) and to get user acceptance of the program without questioning our choice of language.

We could have done the graphics directly in Prolog though the best graphics package in Prolog lags somewhat behind other windows based languages such as Visual Basic, Visual C++ or Delphi. Visual Basic, for instance, allows a number of different scales (inches, centimeters, twips, ...), scaling of windows, the ability to reset coordinate systems and other useful graphics functions. Using Visual Basic also furthers our other goal of having the user accept the program because Visual Basic is a standard development system for Windows and therefore provides a comfortable, familiar environment for users. Adapting Visual Basic for the interface was rather straightforward as Amzi! Prolog has the "hooks" to allow it to be used as the inference engine for a Visual Basic front-end. In fact, Amzi! advertises what it calls a "Prolog sandwich"; a Prolog program embedded between C and Visual Basic. We believe that they are on the right track but just have not carried the idea through to completion.

Multi-paradigmatic Programming

The guillotine program is one of a set of programs we are developing as part of an in-house research program that is investigating multi-paradigmatic programming. Multi- paradigmatic programming uses multiple programming paradigms together to solve a single problem. We have used combinations of three paradigms as needed (logic, procedural and object oriented) using Windows (Windows 95 and Windows NT). Windows facilitates this type of programming by providing Object Linking and Embedding (OLE), Dynamic Data Exchange (DDE) and Dynamic Link Libraries (DLL). The last allows modules to be written as "black boxes". There is no need to determine what language the DLL was written in, only how to call and use it. DLL are a logical and powerful extension to the standard software library. The Windows system software dynamically links the appropriate DLL to a program at run time. Thus there is no need to recompile and link when building a program. We feel this raises software libraries and modular programming to a new level. This style of programming gives programmers a great deal of power and freedom but also raises some new questions.

The first question we usually encounter when explaining this approach is "why bother"? Obviously we could have written the whole guillotine program in Prolog. Why should we bother with Visual Basic or any other language? If there is only one programmer writing programs for their own use then there is no need to bother. However, if there is a team of programmers writing commercial programs then there are a number of reasons: the freedom for programmers to specialize in a language, the ability to easily create familiar looking applications, and a great speed-up in programming. The last point may need some defending, but picking the right tool for the job speeds up any job. Contrary to what their respective aficionados say, there is no perfect language. The reason people are using C (and C++) more and more is that it is capable of handling anything that needs to be done in a program. But there is a trade off in doing that. How many more hours would it take to produce a medium sized context free grammar in C then it would in Prolog? It could be written in C but why use C if Prolog were available? Likewise, if a program requires matrix manipulation why would Prolog be chosen? Each language has its strengths and weaknesses, by using the multi-paradigmatic approach the strengths are exploited while the weaknesses are avoided.

There is some overhead with the approach as each language has to have the capability and support for OLE, DDE and DLL. However more and more languages are being developed that do have that support. We have Prolog, Visual Basic, Lisp, Visual C++, Delphi and Smalltalk. Others, like APL and Scheme, are being developed. This allows a development team to select precisely the best language for a subset of the problem at hand. And the approach is not limited to just programming languages. The impetus for OLE was not languages but applications. So many of the applications have OLE, DDE and DLL support. This allows direct usage of databases, spreadsheets, advanced calculators, statistic packages, graphics packages and even word processors. Multi-paradigmatic programming then opens whole new vistas for practical applications in Prolog.

Summary

A program has been presented that solves the 2- dimensional guillotine problem for a specialty paper company. The program exploits Prolog's strengths: abstract data types; top-down, left-to-right control structure; recursion and backtracking. The program also uses Visual Basic for graphical output and as an user interface. This mixing of languages positively impacts our ability to write useful software and our ability to market embedded AI systems. It is a lesson learned that is well worth heeding.
